SLITTING MACHINE

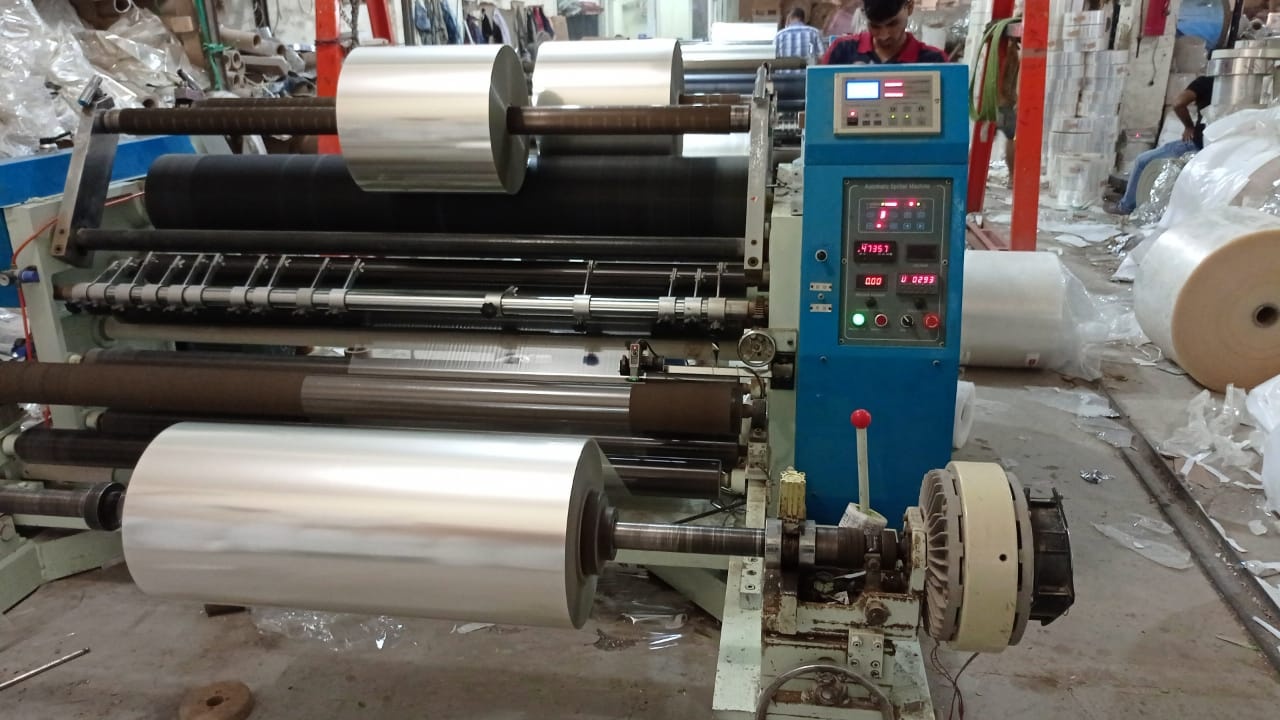

BOPP SLITTING MACHINE
This machine is suitable for slitting and rewinding such various roll materials can cut edge,separate and cut material according to different requirements during production.

MACHINE SPECIFICATION:

1.INVERTER Delta

2.BIG MORTOR 5.5KW

3.CUSTOMIZED TROLLETY

4.COMPOSSOR 0.75KW

5.20KG MAGNETIC POWER

6.ENGLISH PANEL

7.TRIM BLOWER

8.VOLTAGE TRASFORMER

9.Opitional TENSION CONTROLLER

TECHNICAL PARAMETER :

Model NES-1000/1300/1500/1800/2000/2500

Unwinding roll Max.diameter 1000mm

Rewinding roll Max.diameter 600mm

Width of raw material 1800mm

Inner paper core (unwind part) 76.2mm 3inch ,

Inner paper core (rewind part) 76.2mm 3 inch ,

Precision of EPC 1mm

Min.slitting width 50mm

Cutting speed 380m/min

Total power 8.5kw (380V 50hz 3 phase )

Machine weight 3500kg

Machine dimension 3700X2000X1100mm
